How a German Semiconductor Equipment Manufacturer Improved Process Stability Using Custom PEEK Precision Fixtures
Customer Overview
Michael Schneider is a senior process engineer at a semiconductor equipment manufacturer based in Bavaria, Germany. The company develops high-precision wafer handling and inspection systems for advanced microelectronics production.
In 2025, the engineering team was upgrading a wafer transfer module used in a high-cleanliness production environment, where material contamination and thermal stability were critical concerns.
The Challenge
During system validation, the team identified several issues related to traditional metal fixture components:
Although metal fixtures provided sufficient strength, they introduced several limitations in ultra-clean environments:
- Risk of particle contamination during long-term operation
- Thermal expansion mismatch affecting positioning accuracy
- Electrical conductivity interfering with sensitive process zones
- Wear marks appearing on contact surfaces during repeated cycling
These factors led to reduced process stability and inconsistent wafer alignment during automated transfer cycles.
Even microscopic deviations were unacceptable in high-precision semiconductor environments.
Searching for a Non-Metal Solution
The engineering team began evaluating high-performance polymers as an alternative to metal fixtures.
The requirements were strict:
- High dimensional stability under continuous operation
- Chemical resistance to cleaning agents and process gases
- No particle shedding during mechanical contact
- Tight CNC machining tolerance for repeatable positioning
- Structural rigidity for multi-point clamping design
After evaluation, PEEK was selected as the optimal material.
The Solution

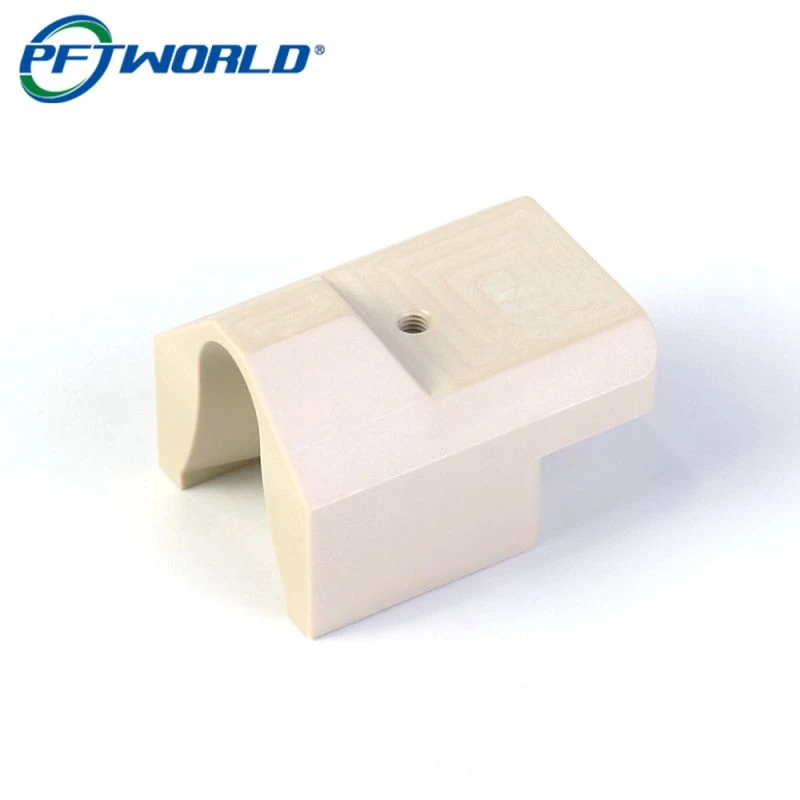

A set of custom CNC-machined PEEK fixture blocks was developed for the wafer handling module.
Precision CNC Milling of Complex Geometry
The U-shaped clamping structures were machined using multi-axis CNC milling to ensure smooth contact surfaces and consistent geometry across all units.
Integrated Threaded Mounting Design
Internal threaded holes were added for secure installation into the aluminum frame without introducing metal-to-metal wear in critical zones.
Stress-Free Machining Strategy
Special machining parameters were applied to prevent internal stress buildup, ensuring long-term dimensional stability during thermal cycling.
Cleanroom-Compatible Surface Finish
All contact surfaces were finished to a low-roughness standard to reduce particle generation and improve sliding stability.
The Results
After integrating the PEEK fixtures into the wafer handling system, performance improvements were observed during continuous operation testing.
The engineering team reported:
- Improved wafer positioning consistency
- Significant reduction in particle contamination risk
- More stable performance during thermal cycling
- Reduced wear on contact interfaces
- Higher reliability in automated transfer cycles
The upgrade contributed to smoother operation of the entire wafer handling module in a cleanroom environment.
Customer Feedback
"Switching to PEEK fixtures eliminated several long-standing stability issues. The machining precision and material stability helped us achieve much more reliable wafer handling performance."
Michael Schneider
Senior Process Engineer
Bavaria, Germany
