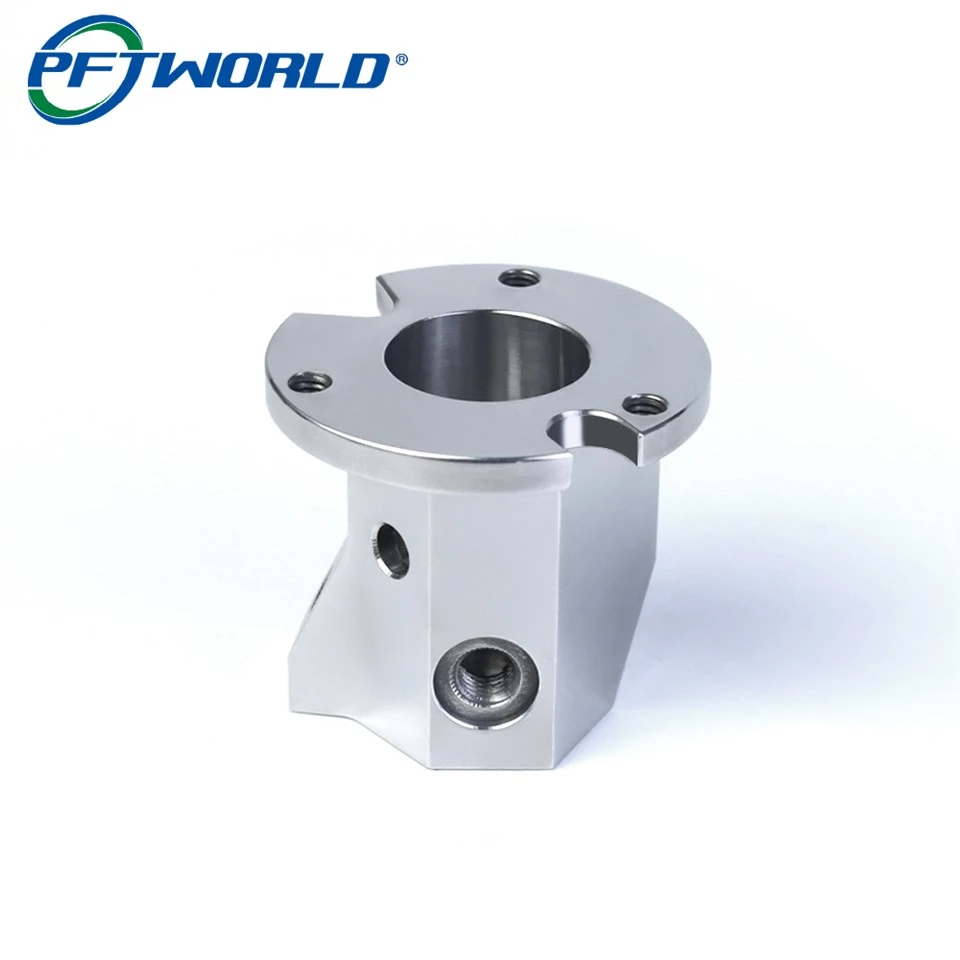

EDM Machining For Hardened Tool Steel
Brand Name: PFT
Certification: ISO9001:2015,AS9100D,ISO13485:2016,ISO45001:2018,IATF16949:2016,ISO14001:2015,RoSH,CE etc.
Model Number: OEM
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: $0.48
Delivery Time: 7-15 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000Pcs/ Month
Send Inquiry
Product Details ofEDM Machining For Hardened Tool Steel
Let's face it - working with hardened tool steel can feel like trying to carve a diamond with a butter knife. That's where EDM (Electrical Discharge Machining) comes in. This ingenious process doesn't care how hard your material is - if it conducts electricity, EDM can shape it with precision that'll make traditional machinists jealous.
Why EDM is the Go-To for Hardened Tool Steel
When your steel hits that Rockwell C 50+ hardness level, conventional cutting tools start crying uncle. Here's why shops increasingly turn to EDM:
✔ Hardness? Doesn't matter - Cuts H13 at HRC 52 as easily as mild steel
✔ No mechanical stress - Say goodbye to tool deflection and workpiece distortion
✔ Complex geometries made easy - Undercuts, sharp corners, and fine details? No problem
✔ Superior surface finishes - Achieve Ra 0.2μm with fine finishing passes
Real-World Applications That'll Surprise You
- Injection molds - Core and cavity sets with perfect shut-offs
- Stamping dies - Punches and buttons that last 10x longer
- Aerospace components - Fuel system parts that can't risk micro-cracks
- Medical tools - Surgical instruments with razor-sharp edges
The Nuts and Bolts of How EDM Works
- Spark Generation: Electrode and workpiece submerged in dielectric fluid
- Controlled Erosion: Thousands of sparks per second vaporize microscopic amounts
- Debris Removal: Flushing system carries away particles
- Precision Control: Computer maintains perfect 0.01-0.05mm gap
EDM vs. Other Hard Steel Processes
- EDM：Complex hardened parts
- Grinding：High precision surfaces
- Hard Milling：Faster material removal
- Laser：Fast cutting
Material Prep Tips for Best Results
- Heat treat first - EDM after hardening to avoid distortion
- Rough machine close to shape - Save hours of EDM time
- Consider the steel grade:
D2: Machines well but watch for micro-cracking
H13: EDM's best friend - consistent and predictable
M2: Requires careful parameter settings
FAQ:
Q:How fast can I receive a CNC prototype?
A:Lead times vary depending on part complexity, material availability, and finishing requirements, but generally:
- Simple prototypes: 1–3 business days
- Complex or multi-part projects: 5–10 business days
Expedited service is often available.
Q:What design files do I need to provide?
A：To get started, you should submit:
- 3D CAD files (preferably in STEP, IGES, or STL format)
- 2D drawings (PDF or DWG) if specific tolerances, threads, or surface finishes are required
Q:Can you handle tight tolerances?
A:Yes. CNC machining is ideal for achieving tight tolerances, typically within:
- ±0.005" (±0.127 mm) standard
- Tighter tolerances available upon request (e.g., ±0.001" or better)
Q:Is CNC prototyping suitable for functional testing?
A:Yes. CNC prototypes are made from real engineering-grade materials, making them ideal for functional testing, fit checks, and mechanical evaluations.
Q:Do you offer low-volume production in addition to prototypes?
A:Yes. Many CNC services provide bridge production or low-volume manufacturing, ideal for quantities from 1 to several hundred units.
Q:Is my design confidential?
A:Yes. Reputable CNC prototype services always sign Non-Disclosure Agreements (NDAs) and treat your files and intellectual property with full confidentiality.
